Bellona Report nr. 2:96. Written by: Thomas Nilsen, Igor Kudrik and Alexandr Nikitin.
Project 671 RTM (Shuka) - Victor-III Class
|
Northern Fleet |
Pacific Fleet |
Total |
| In service |
16 |
10 |
26 |
| Inactive |
0 |
0 |
0 |
| Dismantled |
0 |
0 |
0 |
| Number |
|
|
26 |
Technical Data
| Length: |
102.2 m |
Displacement: |
4 950/ 6990 tons |
| Beam: |
10 m |
Maximum Depth: |
400 m |
| Draught: |
7m |
Hull: |
Low magnetic steel |
| Speed: |
30 knots |
Crew: |
100 |
Compartments: 8
- Torpedo room and accumulator
- Accommodations and mess
- Control room and steering
- Reactor compartment
- Turbines
- Turbo generators
- Accommodations and diesel generators
- Steering and electric motor
Reactor
Two pressurised water reactors, model OK-300, with a VM-4 type reactor core
generating 2 75 MWt (31 000 hp).
Nuclear Weapons
SS-N-21 cruise missiles. Two SS-N-15 or SS-N-16 missiles.
Naval Architects
G.N. Chernyshev.
Construction Yard
Komsomolsk-na-Amur; Nizhny Novgorod and Admiralty Shipyard. Constucted until
1987.
Base
Nine of the submarines are based at Bolshaya Lopatka, Zapadnaya Litsa.
Individual Submarines
Northern Fleet:
- K-138
K-292
K-324
K-388
K-327
K-218
- K-254
K-298
K-502
K-244
K-255
K-299
- K-358
K-114
K-448
K-524
Pacific Fleet:
- K-242
K-247
K-251
K-264
K-305
K-355
- K-360
K-412
K-492
K-507

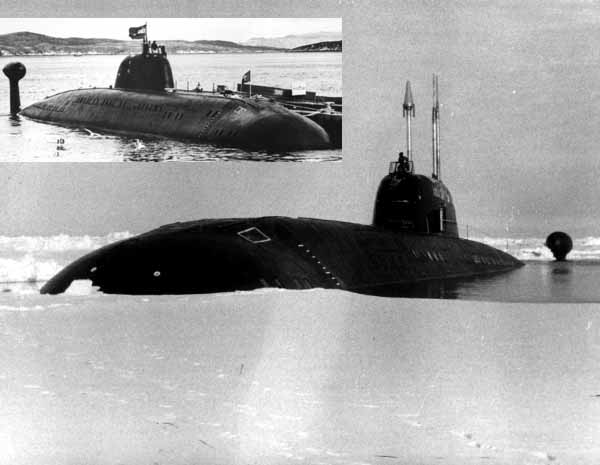

Foto, 22 kb.
[NFL Updated]
[Back to classification]
[References]
[Content]
© Copyright Bellona // Reproduction recommended if sources stated
CD-version, updated 1997-09-28
